SKU: 70020015611

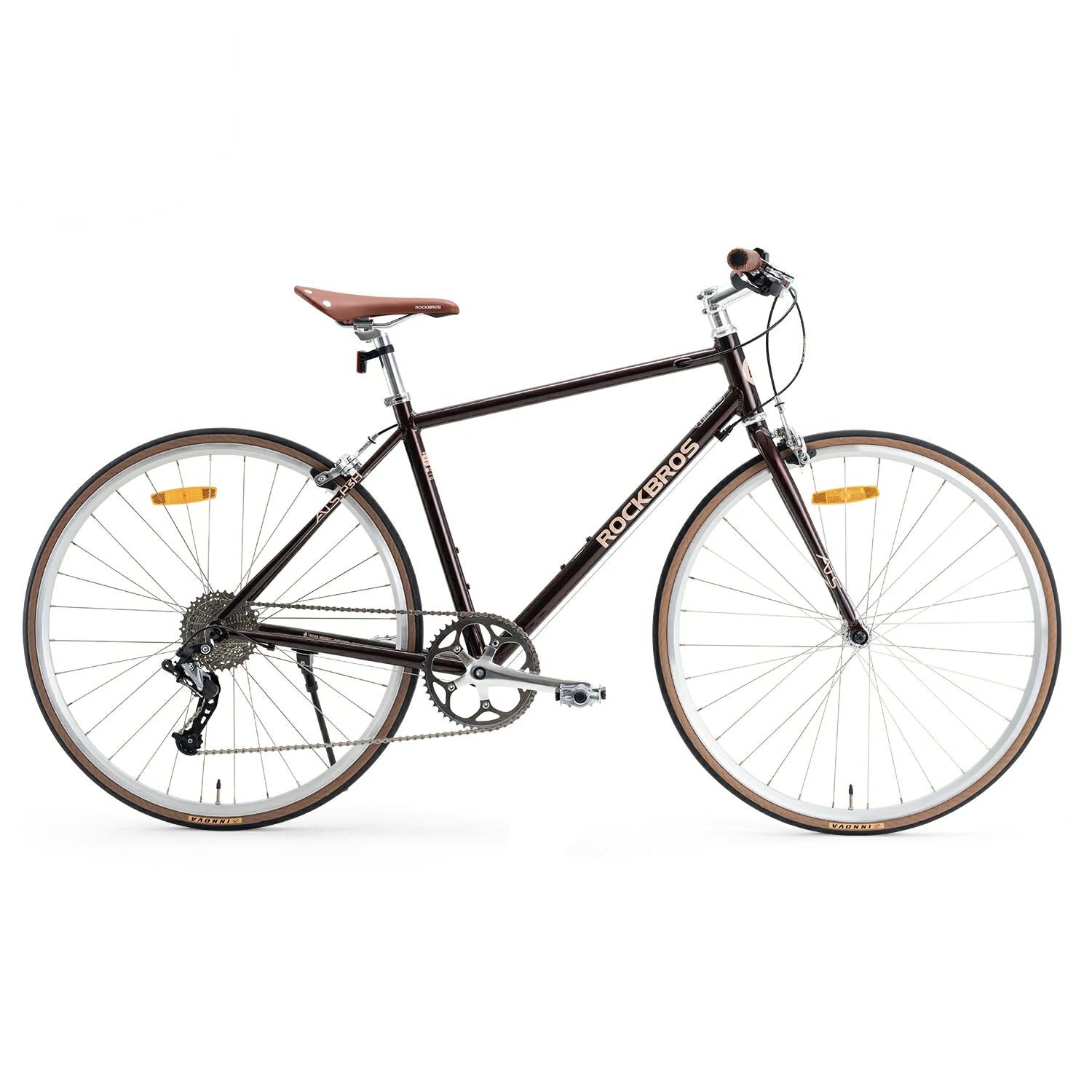

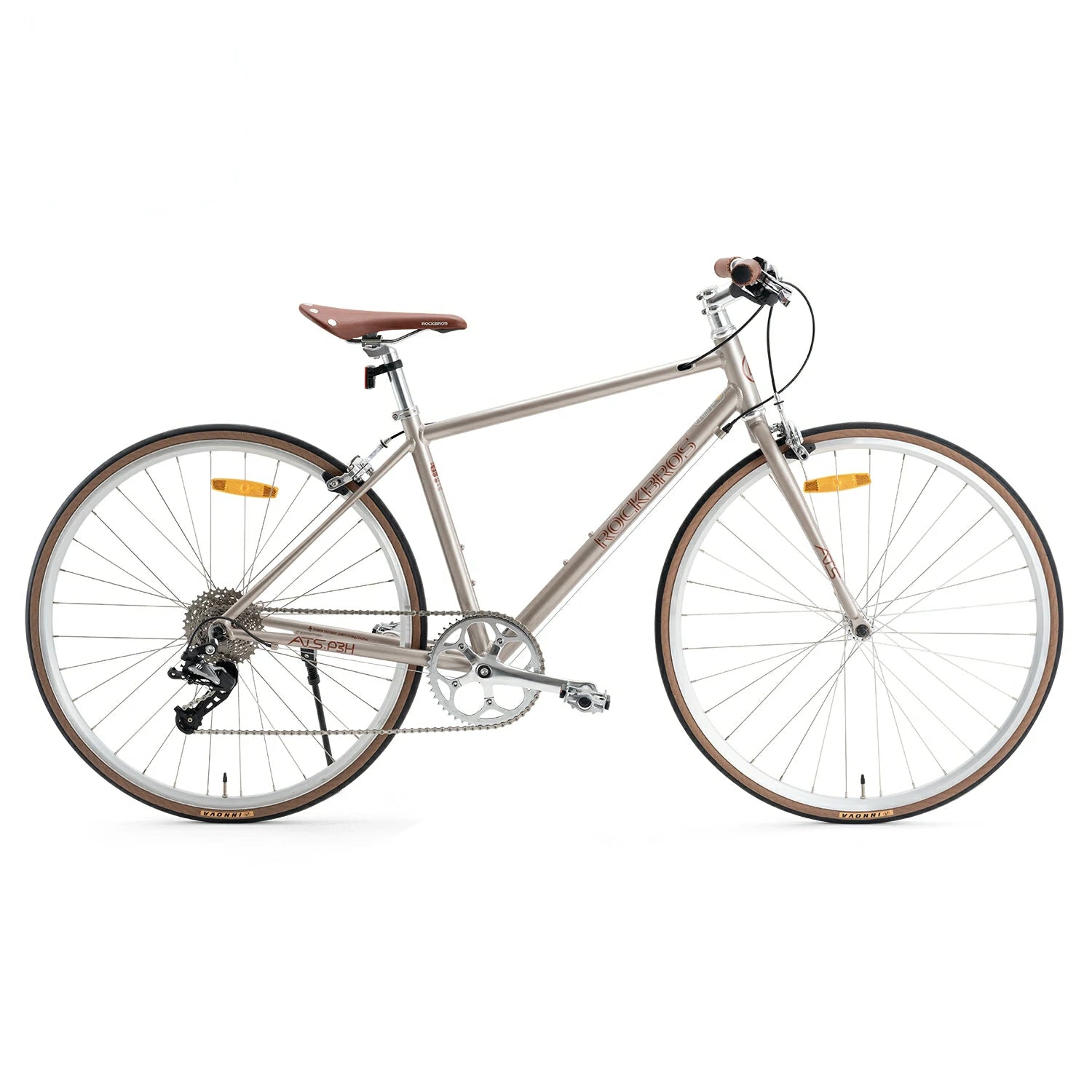

ATS Classic 700C Road Bike

Sale price$399.99 USD

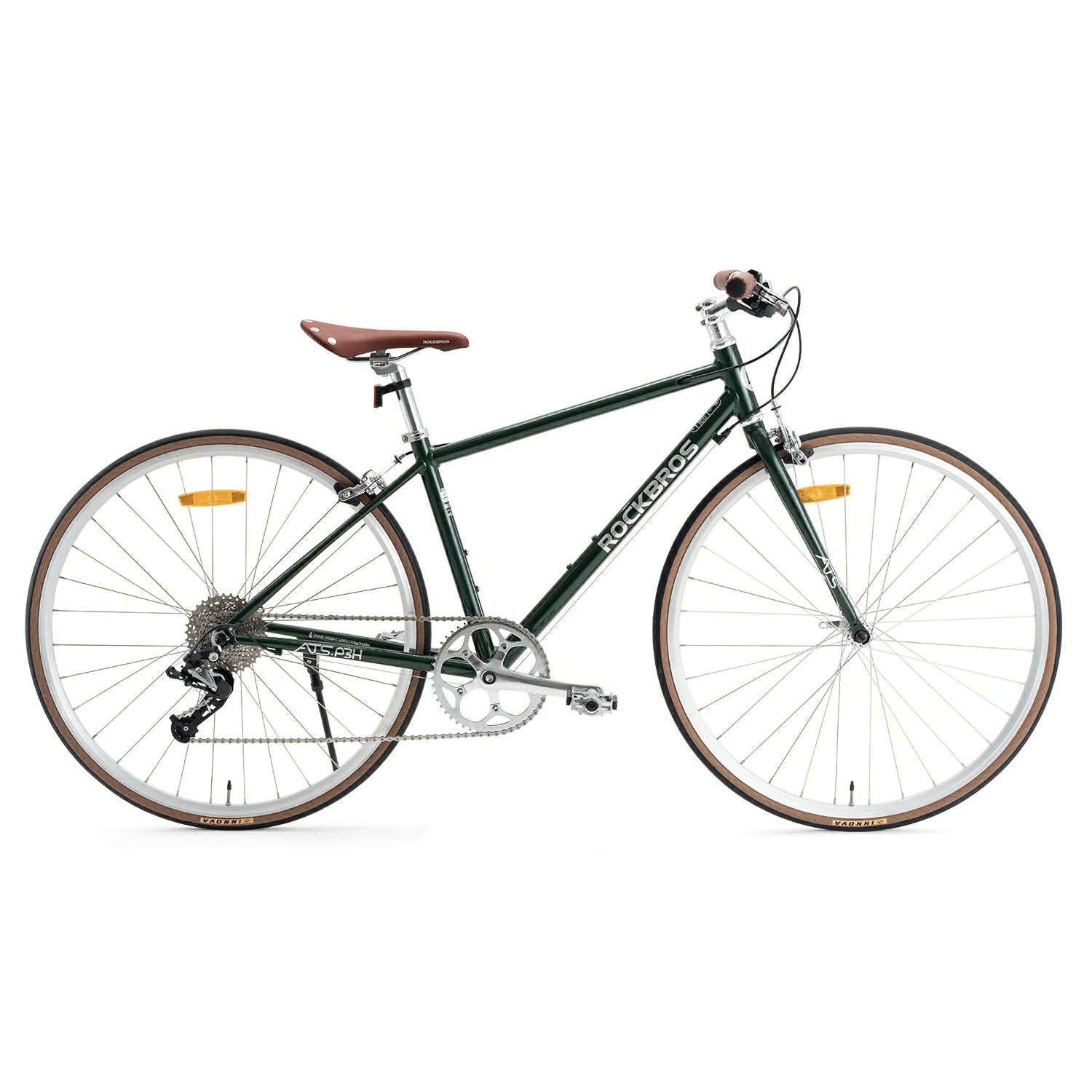

color: Green
size: XS
Description
Item Description
Frame ROCKBROS Aluminum Alloy Frame
Front Fork ROCKBROS Steel Rigid Fork
Handlebar Aluminum Alloy Drop Bar, 31.8 × 530 mm
Stem Forged Aluminum Alloy Stem, 31.8 × 28.6 mm
Saddle ROCKBROS Brown Saddle
Seatpost Aluminum Alloy Seatpost, 27.2 × 300 mm
Bike Weight Approx. 10.10 kg (Size M)
Shifters Shuntai SL6900-M10-R10, 10-Speed
Rear Derailleur Shuntai RD8500-M10-GS, 10-Speed
Cassette SunRace 10-Speed Cassette, 11–28T
Brake System Single-Pivot C-Brake
Crankset Aluminum Alloy Square Taper Crankset, 170 mm × 48T
Rims Aluminum Alloy Rims
Wheelset Aluminum Alloy Spoked Wheels
Hubs Aluminum Alloy Quick Release Bearing Hubs
Spokes 14G Medium Carbon Steel Spokes with Brass Nipples
Tires INNOVA 700C × 28C
Valve Type Presta Valve (FV), 32 mm

Geometry Specifications (Unit: mm / °)

Geometry XS S M L
Seat Tube (mm) 420 450 480 510
Top Tube (mm) 550 565 579 600
Chainstay (mm) 445 445 445 445
Front Center (mm) 609 624 628 645
Seat Tube Angle 73.5° 73.5° 73.0° 73.0°
Head Tube Angle 70.5° 70.5° 71.0° 71.5°
Wheelbase (mm) 1045 1060 1064 1086
BB Drop (mm) 68 68 68 68
Head Tube (mm) 120 130 140 160
Fork Offset (mm) 45 45 45 45
Fork Length (mm) 387 387 387 387
Trail (mm) 390 402 407 422
Stack (mm) 541 550 562 583
Standover Height (mm) 675 701 728 756
